Embroidery Basics
What Is a JEF File? Complete Guide to the Janome JEF Embroidery Format
If you own a Janome embroidery machine, JEF is the format your machine speaks. Every design you load from USB — whether you bought it, downloaded it, or digitized it yourself — ends up as a JEF file before your Janome will sew it.
In this guide, you'll learn what a JEF file is, which machines use it, what stitch and color data it stores, how it compares to DST and PES, and how to open, view, and convert JEF files.

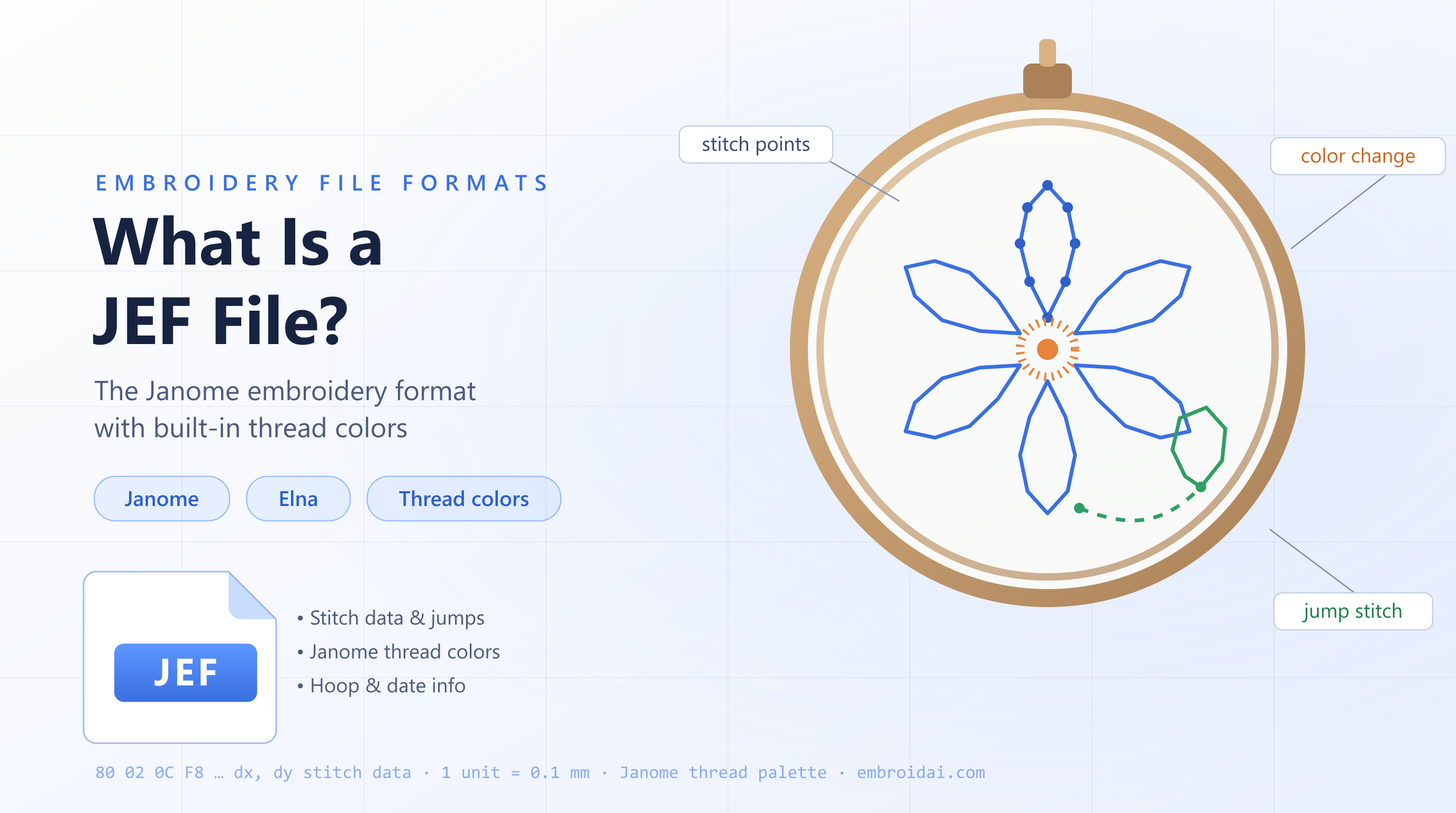

What Is a JEF File?
A JEF file is a machine embroidery file format developed by Janome, one of the world's largest sewing and embroidery machine manufacturers. JEF stands for Janome Embroidery Format.
Like other machine formats, a JEF file is not an image. It contains the instructions an embroidery machine follows to sew a design:
- Stitch movements in 0.1 mm steps
- Jump stitches between design sections
- Color change stops
- The thread colors for each block, from Janome's palette
- The hoop the design was saved for, plus a date stamp
That fourth point is what sets JEF apart from bare-bones production formats like DST and EXP: a JEF design remembers its colorway, so it opens on the machine in the colors the digitizer intended.
Where Does the JEF Format Come From?
Janome introduced JEF around 2000 with the Memory Craft 10000, its first embroidery machine to read designs from standard PC media instead of proprietary cards. The format has been the backbone of Janome embroidery ever since, spanning entry-level home machines to the flagship Memory Craft and Continental models.
Because Janome also builds embroidery machines for Elna, those machines read JEF too. And Janome's own software uses an extended variant, JEF+, which layers editing data on top of the same stitch format.
What Information Does a JEF File Contain?
A Real Header
Unlike the headerless EXP format, a JEF file starts with a header that records where the stitch data begins, how many color blocks the design has, when the file was created, and which Janome hoop the design was saved for.
Thread Colors
Each color block stores an index into Janome's standard thread palette of several dozen colors. The machine uses these to display the design in its intended colorway and to prompt the correct thread at each stop.
Stitch Data
After the header, stitches are stored as small X and Y movements from the previous needle position, measured in 0.1 mm units — the same resolution as DST and EXP.
Jumps and Color Changes
Escape codes in the stitch stream mark jump moves (travel without stitching) and the stops where the machine waits for the next thread color.
What Does a JEF File Not Contain?
JEF is still a stitch format, not a design source file:
- Editable design objects (outlines, lettering, fills)
- Arbitrary custom colors — the palette is limited to Janome's thread chart
- Explicit trim commands (the machine infers trims from jump runs)
- Fabric or stabilizer recommendations
- Design name or author metadata
As with every machine format, professional digitizers keep the master design in their software's native format and export JEF for Janome machines.
Advertisement
JEF vs DST: What's the Difference?
Both formats drive embroidery machines, but they come from different worlds — JEF from home embroidery, DST from commercial production:
| JEF File | DST File |
|---|---|
| Developed by Janome | Developed by Tajima |
| Native to Janome and Elna home machines | The commercial industry standard |
| Stores thread colors (Janome palette) | Stores no thread colors |
| Records the target hoop and creation date | Stores design extents in a text header |
| Common for home embroidery designs | Common for logos and production files |
The two convert cleanly in either direction — just remember that converting JEF to DST drops the color information, because DST has nowhere to store it. For the other big home format, see our guides on DST vs PES and the EXP format.
How Are JEF Files Created?
JEF files are created through embroidery digitizing — converting artwork, logos, or text into machine-readable stitch instructions.
During digitizing, the designer decides on:
- Stitch types (running, satin, and fill stitches)
- Stitch directions and density
- Underlay to stabilize the fabric
- Pull compensation for fabric stretch
- The sewing sequence, colors, and travel paths
Once the design is finished, the software generates the stitch data, maps the chosen threads onto Janome's palette, and exports a JEF sized for a specific Janome hoop — or a DST, PES, or EXP for other brands.
How to Open and View a JEF File
There are three practical ways to open a JEF file:
Embroidery Software
Janome's own software and most digitizing suites — Wilcom, Hatch, Embird, and the free Ink/Stitch — open JEF designs and can re-export them to other formats.
Embroidery Machines
Janome and Elna machines read JEF directly from a USB stick and show the design, its colors, and the required hoop on screen.
Online Viewers
An online viewer lets you inspect a design in the browser without installing anything. The free EmbroidAI JEF viewer opens a .jef instantly in its real thread colors and shows stitches, jumps, and exact dimensions. Have the same design in another format? There's a matching DST viewer and EXP viewer as well.
Work with embroidery files in your browser
Convert DST ↔ PES for free, or sign in to digitize artwork and export machine-ready DST, PES, EXP, and JEF files.
Common JEF File Problems (and Fixes)
The machine says the design is too big
JEF designs are saved for a specific Janome hoop. If your machine doesn't have that hoop — or its embroidery area is smaller — it will refuse the file. Re-save the design for a hoop your machine supports, or resize it in embroidery software.
The colors don't match my threads
JEF colors come from Janome's standard thread chart, so other brands map to the nearest palette color. Keep the digitizer's color sheet with the design and assign your real threads at the machine.
The design stitches poorly after resizing
Like every stitch format, JEF contains final stitch data, so scaling changes stitch spacing without regenerating stitches. Resize the original digitizing file, or have the design redigitized at the new size.
Common Uses of JEF Files
You'll typically encounter JEF files in:
- Home embroidery on Janome and Elna machines
- Design marketplaces that bundle JEF alongside PES, DST, and EXP
- Monograms, quilt labels, and in-the-hoop projects
- Small-business embroidery run on Janome flagship machines
Janome's huge installed base of home machines keeps JEF one of the most requested formats in every design shop.
Frequently Asked Questions
What does JEF stand for?
JEF stands for Janome Embroidery Format. It is the native machine format for Janome embroidery machines and the Janome-built Elna models.
Which embroidery machines use JEF files?
JEF is native to Janome embroidery machines — including the Memory Craft series — and to Elna machines built by Janome. Most other machines can use a JEF design after converting it to their own format, such as DST or PES.
Do JEF files store thread colors?
Yes. Unlike DST or EXP, a JEF file records each color block as an index into Janome's standard thread palette, so the design opens in its intended colorway on the machine.
Can I convert a JEF file to DST or PES?
Yes. Because JEF, DST, and PES all store stitch data, embroidery software and converters can translate between them while keeping the stitches intact.
What is a JEF+ file?
JEF+ (.jef+) is an extended version of the format used by Janome's own software. It adds editing-oriented data on top of the stitch information, while plain JEF remains the format machines sew from.
Why won't my JEF file open on my machine?
The most common cause is that the design was saved for a hoop your machine doesn't have, or is larger than your maximum embroidery area. Re-save the design for a supported hoop, or resize it in embroidery software before loading it again.
Conclusion
A JEF file is Janome's native embroidery format: stitch movements, jumps, and color-change stops, wrapped in a header that records the target hoop, the creation date, and — unlike DST or EXP — the design's actual thread colors from Janome's palette.
If you receive a JEF design, you can sew it directly on a Janome or Elna machine, open it in embroidery software, or convert it to DST, PES, or EXP for any other brand. Knowing what the format stores — especially its hoop requirement and palette-based colors — is the key to trouble-free stitching.
